High Quality E71T-1C Flux Cored Welding Wire for Industrial & Structural Welding

Our E71T-1C flux-cored welding wire is a rutile-type, gas-shielded FCAW wire engineered for all-position welding of carbon and C-Mn steels. Designed and manufactured with strict quality control, this wire delivers radiographic-quality welds, excellent mechanical strength, and smooth weld bead appearance across a wide range of fabrication applications.

Conforming to AWS A/SFA 5.20 E71T-1C, EN ISO 17632, and IS 15769, this welding wire is suitable for both single-pass and multi-pass welding, ensuring reliability in critical industrial projects.

Predict the Future by Creating it

3 multiple international welding standards, ensuring consistent performance and global acceptance:

AWS A/SFA 5.20 classification E71T-1C

EN ISO 17632 A classification T 42 2 R C/M 2 and T 422 PC12

IS 15769 classification ET531RC-9

BIS approved for assured quality and compliance

These certifications reflect our manufacturing expertise, product reliability, and commitment to industry standards.

Typical Chemical Composition of E71T-1C Weld Metal

The weld metal chemistry is carefully controlled to achieve stable arc performance and high-quality weld deposits. Typical undiluted weld metal composition includes approximately 0.06% Carbon, 1.40% Manganese, and 0.40% Silicon. This balanced composition supports good penetration, controlled slag formation, and excellent mechanical properties.

Mechanical Properties of E71T-1C Flux Cored Welding Wire

The E71T-1C welding wire produces weld metal with strong and dependable mechanical performance. Typical ultimate tensile strength is around 570 MPa, with a specified minimum of 490 MPa. Yield strength at 0.2% offset typically reaches 480 MPa, exceeding the minimum requirement of 390 MPa. Elongation values are typically around 26%, with impact toughness values reaching up to 60 Joules, meeting and surpassing standard specifications.

These properties make the wire suitable for load-bearing structures and dynamic service conditions.

Key Features of E71T-1C Flux Cored Welding Wire

All-position welding capability

Produces radiographic-quality weld deposits

Rutile-type gas-shielded FCAW wire

Smooth, uniform weld bead appearance

Easy slag removal with minimal post-weld cleaning

Low fume generation and minimal spatter

High deposition rate for improved productivity

Suitable for high-quality single-pass and multi-pass welds

Help fabricators achieve better weld quality and reduce rework

Recommended Welding Parameters for E71T-1C FCAW Wire

This flux-cored welding wire E71T-1C is available in wire diameters of 1.2 mm and 1.6 mm. The recommended current range is approximately 130–300 amperes for 1.2 mm wire and 200–380 amperes for 1.6 mm wire. Welding is performed using DCEP (Electrode Positive).

The wire is designed for use with CO₂ shielding gas or mixed shielding gases. When using mixed gas, it is recommended to reduce the voltage by 1–2 volts to achieve optimal arc stability and bead profile

Packing Details of E71T-1C Flux Cored Welding Wire

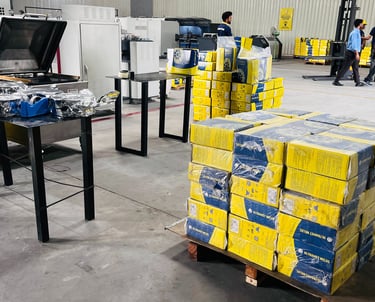

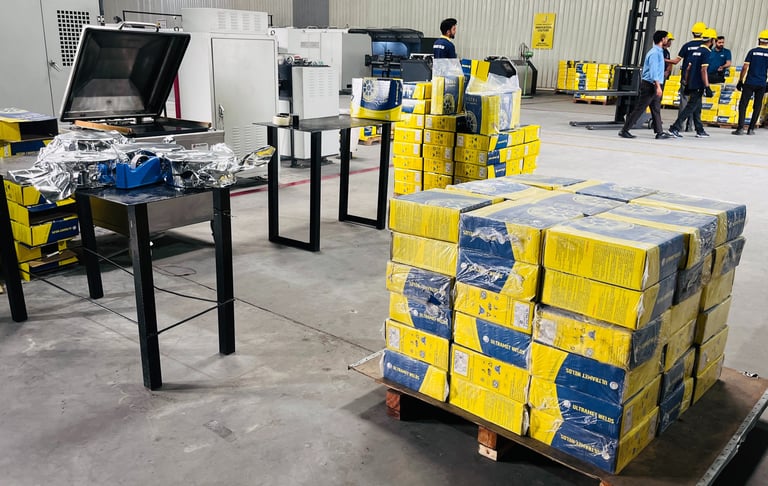

The wire is supplied in 15 kg vacuum-sealed packs, layer-wound on strong plastic spools. Vacuum packaging protects the wire from moisture contamination, ensuring long shelf life, consistent feeding, and reliable welding performance even in challenging site conditions.

Typical Applications of E71T-1C Welding Wire

The E71T-1C flux-cored welding wire is widely used in:

General carbon steel fabrication projects

Structural steel fabrication and storage tanks

Chemical plant machinery and industrial equipment

Bridges, towers, cranes, and heavy engineering works

Shipbuilding, hull fabrication, and marine structures

Construction equipment, farm machinery, and rolling stock

Key Features

• All position capability

• Radiographic quality weld

• Rutile type gas shielded FCW wire

• Easy slag removal, smooth weld bead

• Suitable for high quality single and multi pass welds.

• Low fumes, Minimal spatters with high deposition rate

FLUX CORED WIRE

Technical Assistance & Bulk Supply of E71T-1C Welding Wire

For bulk orders, distributor enquiries, or welding procedure guidance related to E71T-1C flux-cored welding wire, our technical team is available to support your project requirements.
